VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Princeton, FL | Sightline Windows & Doors Princeton

The VLX 100 Bifold / Folding Door is an accordion-style aluminum folding system that erases the boundary between your interior and the outdoors. Homeowners in Princeton, FL choose this door when they want genuine wall-to-wall openness - pool decks, patios, and Florida rooms that breathe with the breeze. At Sightline Windows & Doors Princeton, we’re an authorized ViewLux installation partner, which means your project is covered by factory-backed warranty protection and installed to the manufacturer’s exact standards. We’ve measured, leveled, and sealed these systems across Princeton homes from the Lake Ida corridor to newer construction near Lion Country Safari Road. Call (786) 977-2953 to schedule your free on-site estimate and see how the VLX 100 transforms your space.

Call (786) 977-2953

Product Overview - VLX 100 Bifold / Folding Door

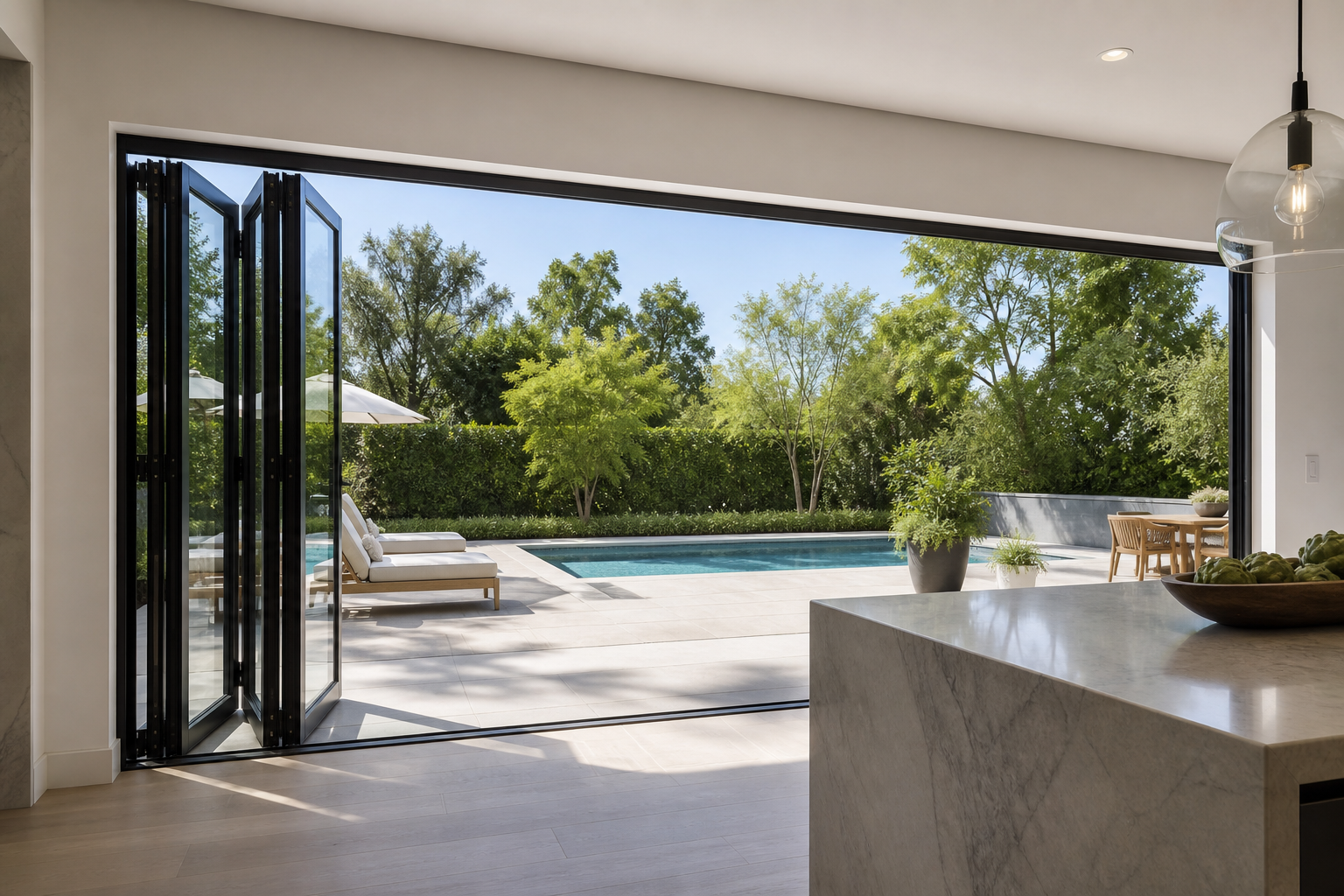

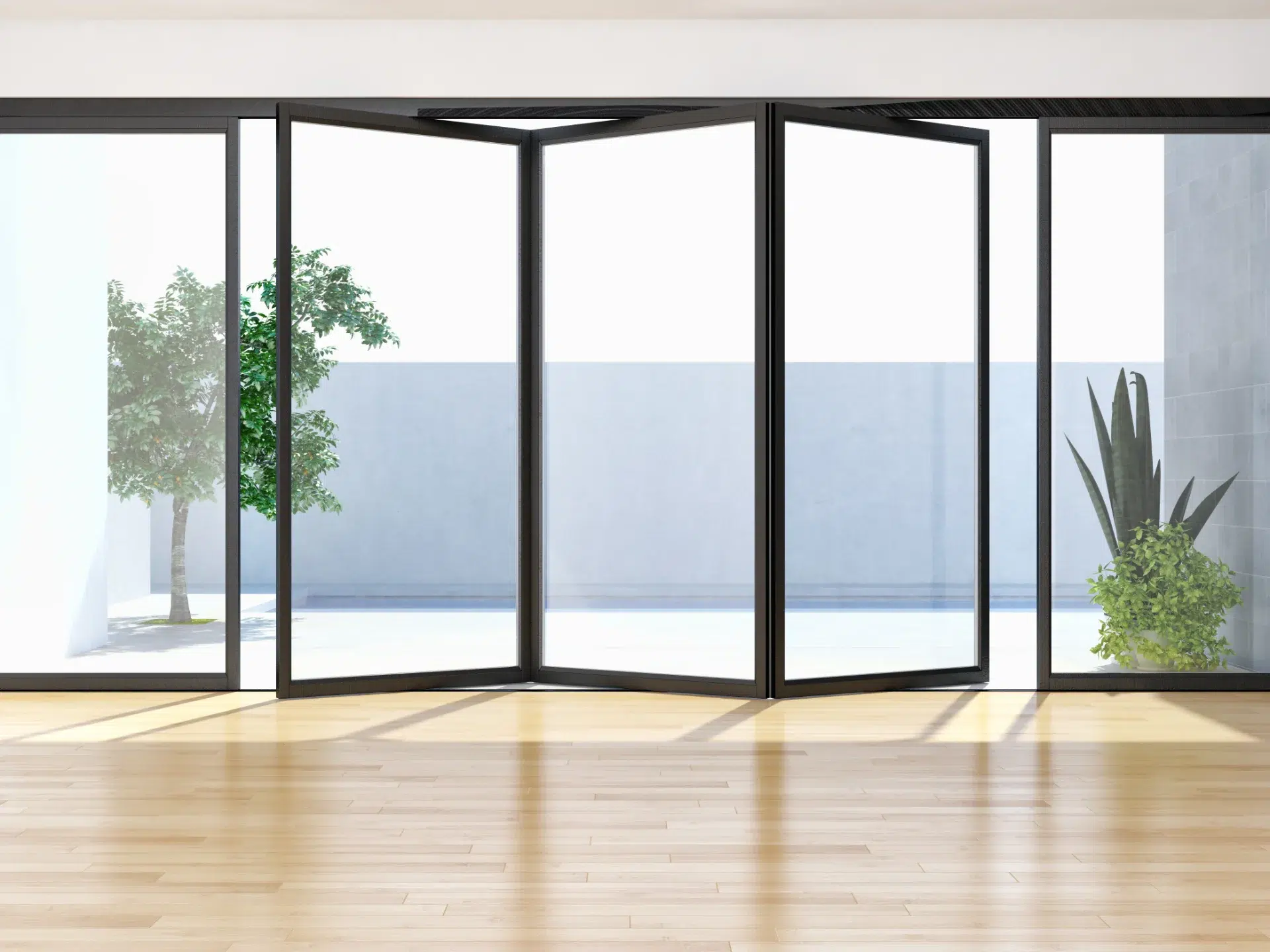

The VLX 100 was built around a simple idea: your door should disappear when you want it to. The accordion-style aluminum bifold stacks panels neatly to one or both sides, opening up to 20 feet of uninterrupted passage. In Princeton, where afternoon thunderstorms give way to cool evenings and outdoor kitchens are nearly standard, that flexibility matters. You’re not choosing between a sealed house and an open patio - you’re getting both, controlled by how far you fold the panels.

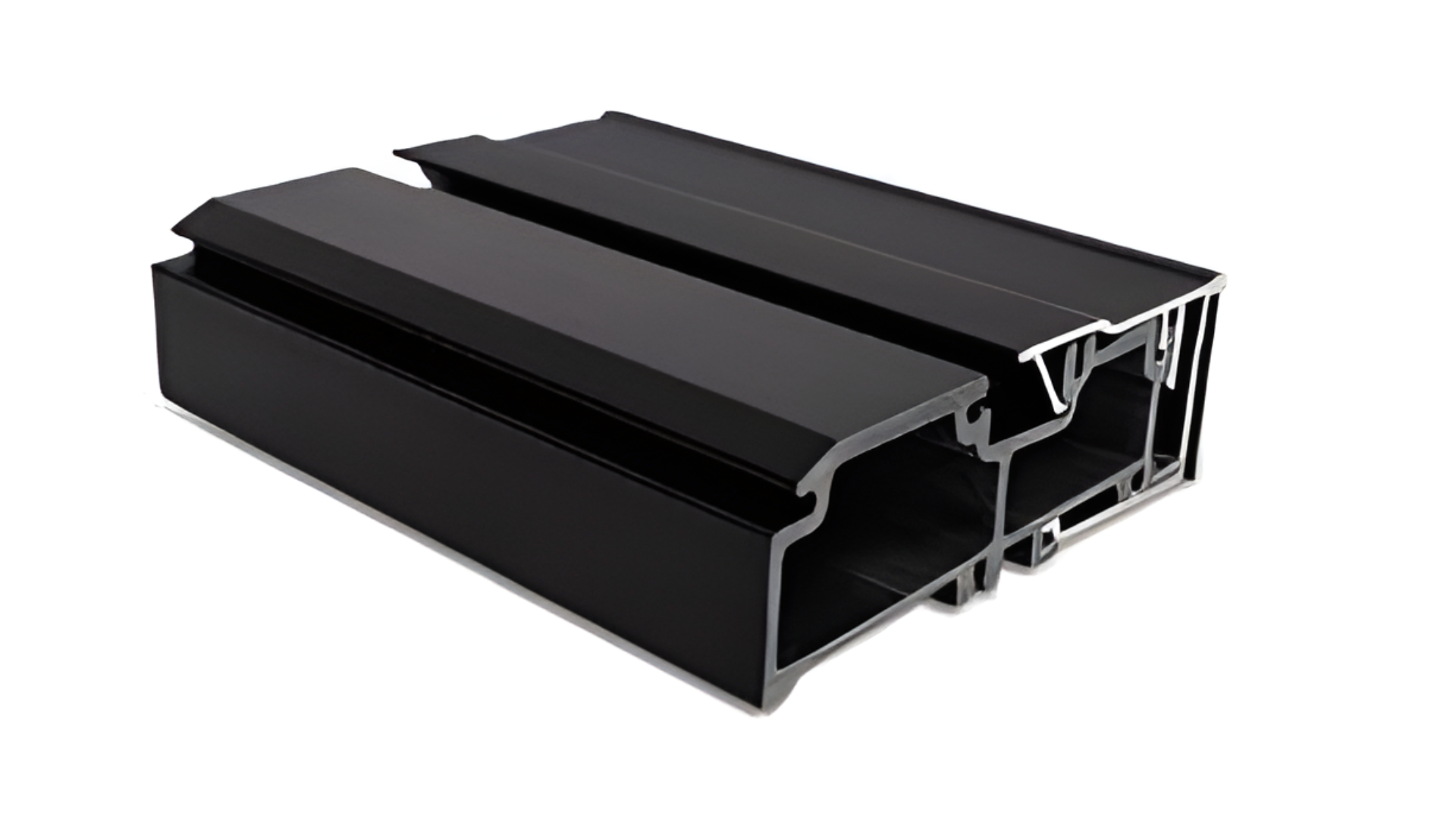

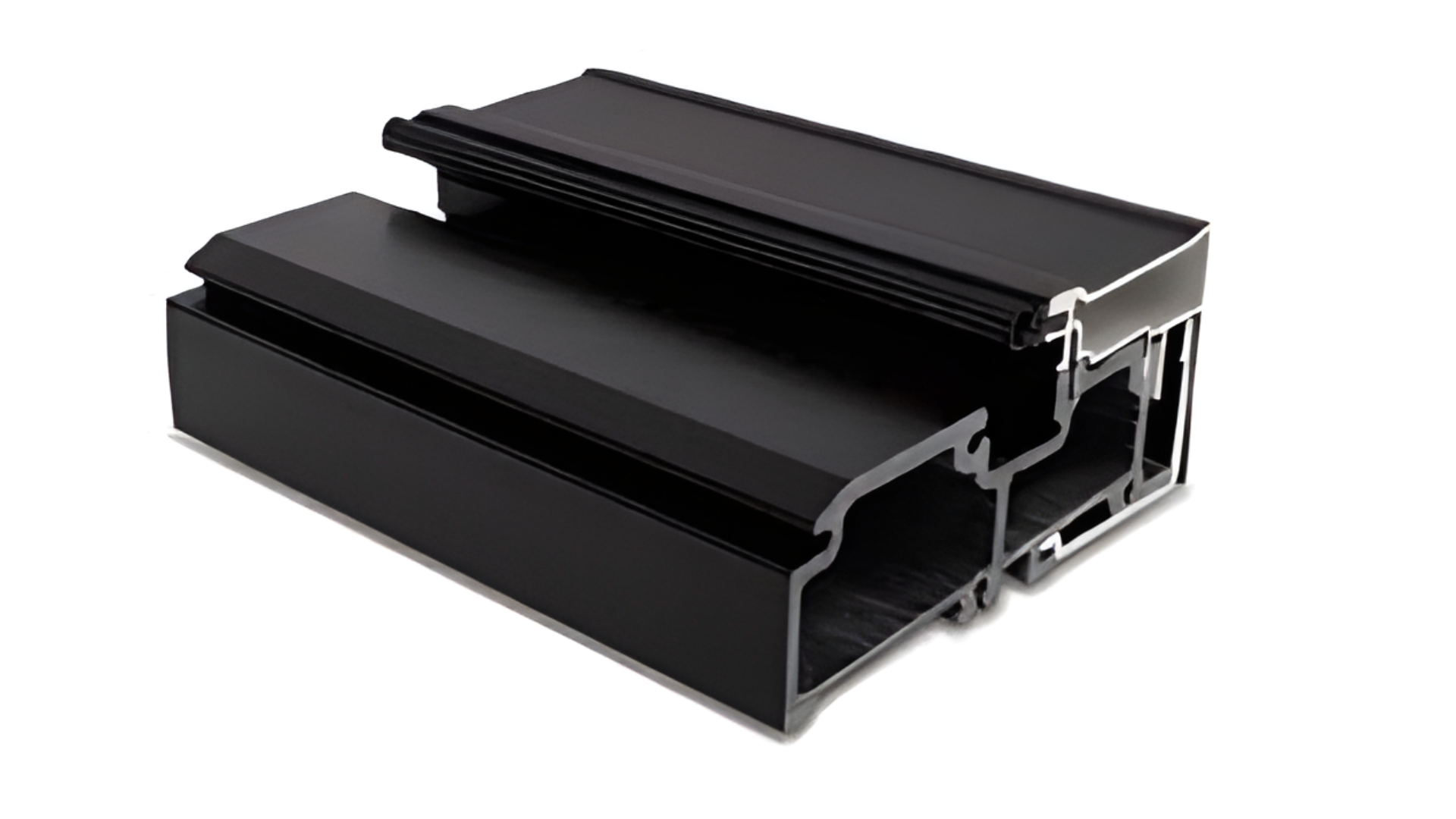

The frame uses a 2.56-inch profile width with 0.098-inch wall thickness, heavier than economy bifolds that flex and rack over time. That rigidity keeps the hardware aligned through thousands of open-close cycles. The thermal break separates interior and exterior aluminum surfaces, so the frame doesn’t become a heat conduit during Princeton’s August afternoons. Every panel hangs from a top-track system with bottom-guided rollers, eliminating the floor track that traps debris and trips feet.

Architecturally, the VLX 100 suits modern builds with clean lines, but we’ve also installed it in transitional homes where the black or bronze finish bridges traditional stucco and contemporary landscaping. The key is proportion: a 16-foot opening with four panels feels balanced, while a 20-foot six-panel run demands structural planning that our team handles during the pre-install phase.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

The NFRC-rated thermal break creates a thermal barrier between interior and exterior aluminum surfaces. In Princeton’s climate, that means your air conditioning isn’t fighting heat transfer through the frame during 90-degree days. Low-E glass options add a spectrally selective coating that reflects infrared heat while admitting visible light.

Acoustic Performance

Multi-point locking hardware compresses gaskets uniformly around each panel perimeter. Laminated glass adds a PVB interlayer that dampens sound transmission from lawn equipment, pool pumps, and nearby traffic. We’ve had Princeton homeowners specifically request this combination for bedrooms adjacent to outdoor living areas.

Airtightness & Weather Seal

Interlocking panel edges with dual-durometer gaskets maintain seal pressure across the full fold range. The AAMA 812 low-expansion foam sealant at perimeter joints prevents air infiltration without distorting the frame during cure. This matters in Princeton during pollen season and after tropical system passages when pressure differentials test every seam.

Waterproofing

Integrated sill dams and weeped track systems manage wind-driven rain. The bottom track slopes to drain outward, not inward. During our post-install water test, we spray the exterior at pressure to verify no penetration at panel joints or frame perimeters - a step we never skip on Princeton installations.

Wind Resistance

The 0.098-inch wall thickness and reinforced corner construction meet wind-load ratings for South Florida requirements. Impact-resistant laminated glass options are available for homes in Princeton’s High Velocity Hurricane Zone exposure. We verify the specific wind-borne debris requirements for your address during our site survey.

Security & Hardware

Multi-point locks engage at the top, bottom, and center of the operating panel. Stainless steel hinges and carriers resist corrosion from Princeton’s salt-air exposure. The laminated glass option adds forced-entry resistance beyond standard tempered glass, and keyed cylinder options are available for panels that serve as primary access points.

Color & Glass Options

Finish Selection

Premium Black has become the default for modern Princeton builds with white stucco and dark window frames - it photographs well and hides minor surface wear. Pure White works on coastal-style homes where you want the opening to read as void rather than frame. Anodized Silver suits mid-century and industrial aesthetics; the actual anodized layer won’t chalk or fade like painted alternatives. Bronze warms up traditional architecture without the heaviness of black. Champagne is subtle, picking up beige and tan tones in Princeton’s prevalent limestone and travertine hardscaping. Teak Wood delivers the grain pattern without the maintenance of actual exterior wood in our humidity.

Glass Selection

Clear glass maximizes visible light and view clarity - what most Princeton pool-cabana installations specify. Low-E is the practical upgrade for west-facing walls that take afternoon sun; it cuts solar heat gain without the mirror effect of tint. Tempered is code-required for doors and any glass within 24 inches of a walking surface. Laminated adds the safety and security benefits of the PVB layer, plus sound damping. Gray Tint and Black Tint reduce glare and increase privacy; Black Tint reads nearly opaque from outside during daylight, which homeowners near Princeton’s busier corridors sometimes prefer.

The retractable screen option deploys when you want ventilation without insects, then rolls away into the jamb when you fold the panels fully open. In Princeton, where no-see-ums and mosquitoes own the dusk hours, that flexibility gets used more than most owners expect.

Installation by Sightline Windows & Doors Princeton in Princeton

We’ve replaced enough improperly installed bifolds to know that the best aluminum system fails if the opening isn’t prepared correctly. Our process starts with a structural assessment: is the header rated for the concentrated load of a 20-foot top-track system? In Princeton’s mix of 1980s concrete block construction and newer frame builds, that question has different answers. We measure twice - opening width at three heights, plumb of the jambs, level of the sill - before we order a single panel.

Installation follows AAMA 2400/2410 standards for fenestration installation. We set the frame level, plumb, and square using composite shims that won’t rot or compress, then anchor through the jamb into structural framing, not just trim or sheathing. The AAMA 812 low-expansion foam sealant fills the perimeter gap with material that stays flexible, maintaining seal integrity as the structure moves seasonally. We don’t use fiberglass batt or backer rod shortcuts that leave voids.

After hardware adjustment and panel hang, we run the water test: calibrated spray from the exterior at pressure, inspecting interior surfaces for any indication of penetration. We check operation across the full fold range, verify latch engagement at every point, and clean the site before we consider the job complete.

Here’s what Princeton homeowners need to understand: ViewLux’s manufacturer warranty requires installation by an authorized partner using specified methods. A handyman or self-install that goes wrong leaves you with full replacement cost. Our authorization means your warranty stays intact, and our workmanship guarantee covers the installation itself.

Princeton’s climate specifics matter too. Our afternoon rain patterns test drainage paths. The salt air near the L-8 Canal corridor accelerates corrosion on non-marine-grade hardware. We specify stainless components and proper weep maintenance because we’ve seen what happens when those details get treated as optional.

Frequently Asked Questions - VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door?

Lead time typically runs 8 to 12 weeks from final measurement and deposit, depending on glass and finish selection. Custom sizes and impact-rated laminated glass can extend this slightly. Call (786) 977-2953 to check current production schedules and reserve your slot.

Does the VLX 100 qualify for energy tax credits?

The NFRC-rated thermal break and Low-E glass options may contribute to whole-home energy efficiency credits under current federal programs, but qualification depends on your total project and tax situation. We provide product performance documentation; consult your tax preparer for specific eligibility. Call (786) 977-2953 and we’ll supply the NFRC certificates you need.

What warranty comes with the Bifold / Folding Door?

ViewLux backs the VLX 100 with a limited lifetime warranty on the frame and finish, plus a 10-year warranty on hardware and sealed glass units, provided installation is performed by an authorized partner like Sightline Windows & Doors Princeton. Our workmanship carries a separate 5-year guarantee. Call (786) 977-2953 for complete warranty documentation.

Can I customize the size?

Yes, within the 20-foot maximum width. Panel counts from 2 to 6 allow proportional scaling for openings from roughly 6 feet to the full span. Heights are configurable to fit your rough opening. We measure on-site in Princeton to confirm exact dimensions before fabrication. Call (786) 977-2953 to schedule your free measurement.

How do I maintain aluminum frames?

Rinse frames quarterly with fresh water to remove salt and debris accumulation, especially if you’re near Princeton’s canal areas. Lubricate hinges and lock mechanisms annually with a silicone-based product. Avoid abrasive cleaners or pressure washers directed at gasket edges. We provide a maintenance checklist at project completion. Call (786) 977-2953 if you need replacement gaskets or hardware adjustment over time.

Get a Quote - VLX 100 Bifold / Folding Door in Princeton

Every project starts with a free on-site measurement and written quote. We’ll walk your opening, confirm structural readiness, and help you choose panel count, glass, and finish for how you actually live in your Princeton home. No pressure, no deposit required to get numbers you can compare. Call (786) 977-2953 or reach out through our site to schedule your appointment with Sightline Windows & Doors Princeton.

Written by the team at Sightline Windows & Doors Princeton, authorized ViewLux installation partner serving Princeton, FL.
